Product Specification

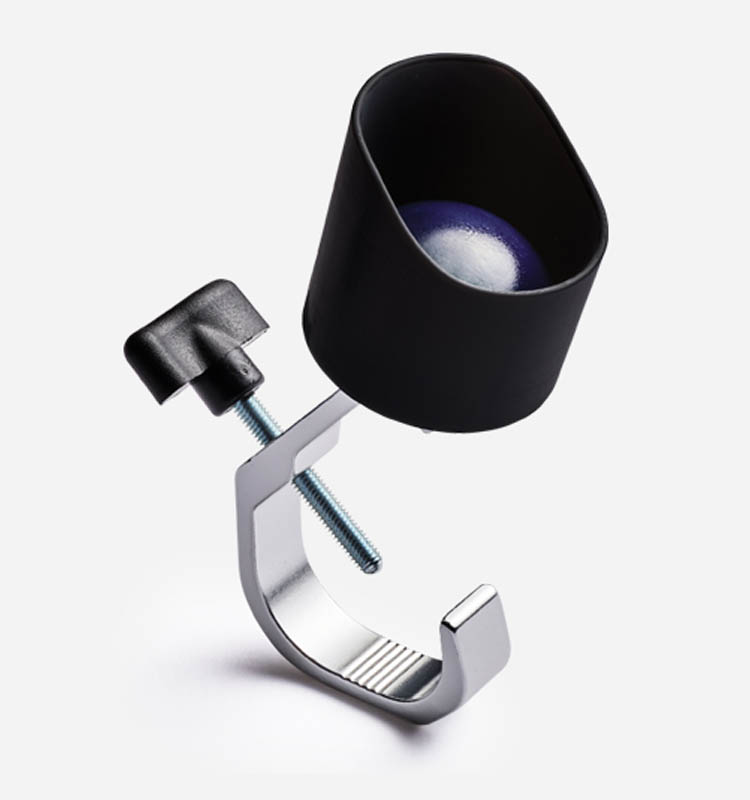

Custodian is permanently positioned to indicate presence of tension
by a light.
For use indoors, in the rooms of medium and high voltage in the transformation centers.
It is placed on bars or cables with voltage from 5 to 138 kV.
Possibility of exchange of the contact electrode by the user.
Phase-Earth voltage of use: 2.9 β 79.6 kV
Phase-phase voltage of use: 5 β 138 kV
Clamp opening: 22 β 53 mm
Connection interface: M8 female
Rotating orientation 30ΒΊ in any direction
Indoor use
Protection degree IP 65 (test pending)
Supplied in a carton box
