Hazardous Area D1EX Cable Gland

Product Specification

Features and Benefits of Cable Gland

For indoors, outdoors, Group II, III, Zone 1, 2, 20, 21 and 22 hazardous areas.

Two-part handling, no loose parts.

A freely rotating captive cone and inspectable cone ring provides an armor clamp and earth bond on steel wire armor.

A specially formulated captive elastomeric seal for Built-in Safety™, seals on the inner sheath of the cable IP65/66/68.

Precision manufactured from high-quality brass (Marine Grade Electroless Nickel Plated™).

Supplied with a thread-sealing gasket (parallel threads only).

Certification

IEC / BS EN

IECEx

ATEX

UKEX

INMETRO

EAC

SANS

INGRESS PROTECTION

DTS 01 DELUGE

MARINE

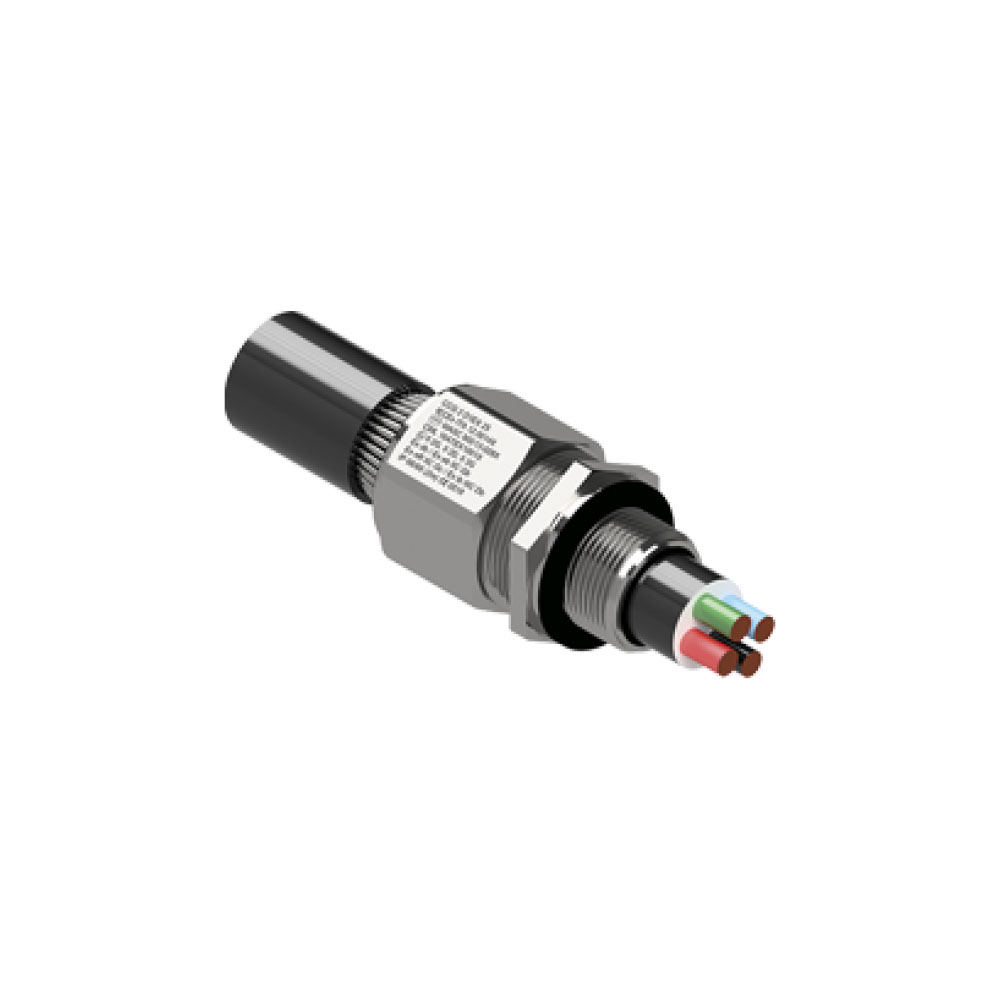

D1EX Gland

Ex db IIC, Ex eb IIC, Ex ta IIIC, Ex nR IIC

Used for Steel Wire Armoured Cable
