Product Specification
Earthing and short-circuit equipment for
medium voltage substations.
The main aim for its installation is
operatorā€™s protection against an accidental
commissioning or possible voltage return
during repair operations.
The 5014H clamp is perfect for difficult access
areas. The clamp can be adjusted depending
on the required inclination thanks to its multidirectional head system.
According to IEC 61230 standard.

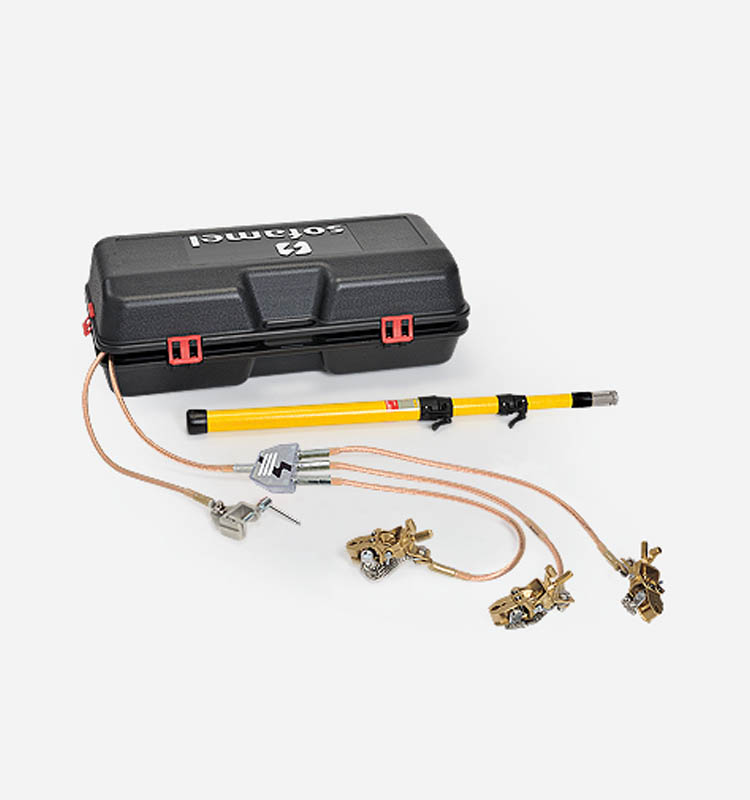

Composed of:
3 5014H brass steerable clamps with screw tighten and Hexagonal-12 fixing
for cylindrical conductors with diameter between 5 and 25 mm.
3 copper cables with PVC insulation of 25/35/50 mm2
section (depending on
model) and 0.75 m long.
1 copper cable with PVC insulation of 25/35/50 mm2
section (depending on
model) and 2 m long.
1 insulated trifurcating connector.
1 TT-38A milling earthing lathe.
1 1.5 m telescopic pole with three sections.
1 plastic case to store and transport the equipment.
