Product Specification
Earthing and short-circuit equipment for medium voltage
overhead lines.
The main aim for its installation is operator’s protection
against an accidental commissioning or possible voltage
return during repair operations.
The MPUB clamp is fixed on bare conductors by screw-tightening. This equipment has got a MPUP clamp (carrier)
which facilitates the lifting and placing of the three clamps
at the same time reducing installation time considerably.
According to IEC 61230 standard.

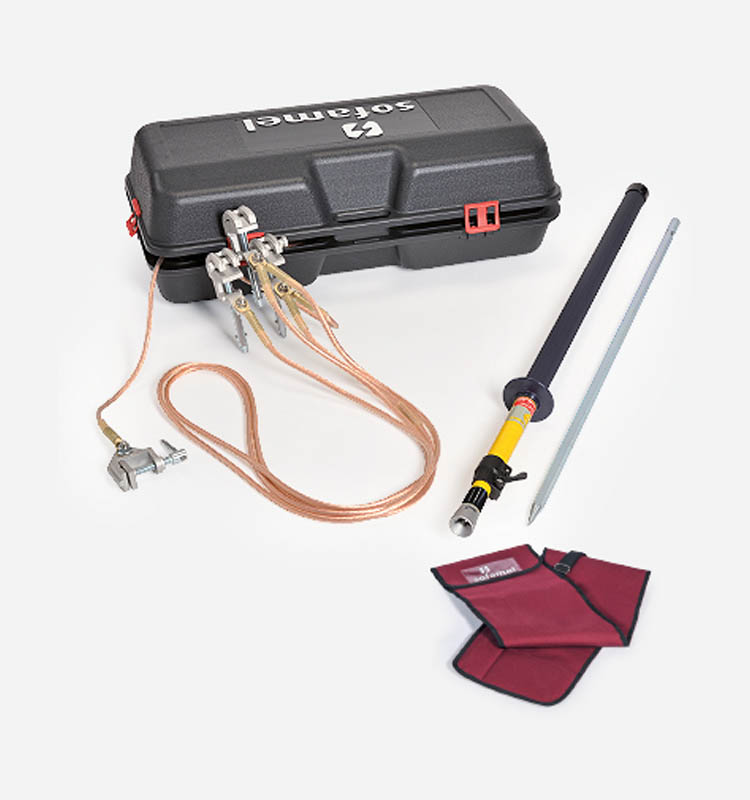

Composed of:
2 MPUB aluminium alloy clamps with screw tighten for cylindrical conductors with
diameter between 4 and 30 mm.
1 MPUP aluminium alloy clamp (carrier) with screw tighten for cylindrical
conductors with diameter between 4 and 30 mm.
2 copper cables with PVC insulation of 16/25/35 mm² section depending on
model and 2.5 m long.
1 copper cable with PVC insulation of 16/16/25 mm² section depending on model
and 15 m long.
1 TT-38A milling earthing lathe.
1 earthing rod.
1 telescopic pole (1.10 m folded and 2 m extended).
1 plastic case to store and transport the equipment.
1 bag to store and transport the pole and the earthing rod.
