Product Specification
Earthing and short-circuit equipment for medium voltage
overhead lines.
The main aim for its installation is operator’s protection
against an accidental commissioning or possible voltage
return during repair operations.
The PCA25 clamp is fixed on bare conductors by pressure
and can be removed by an operation hook. The three
clamps can be placed at the same time thanks to the
dispenser head facilitating operator’s work.
The new PCA-25 clamp grants an easy and secure
installation.
According to IEC 61230 standard.

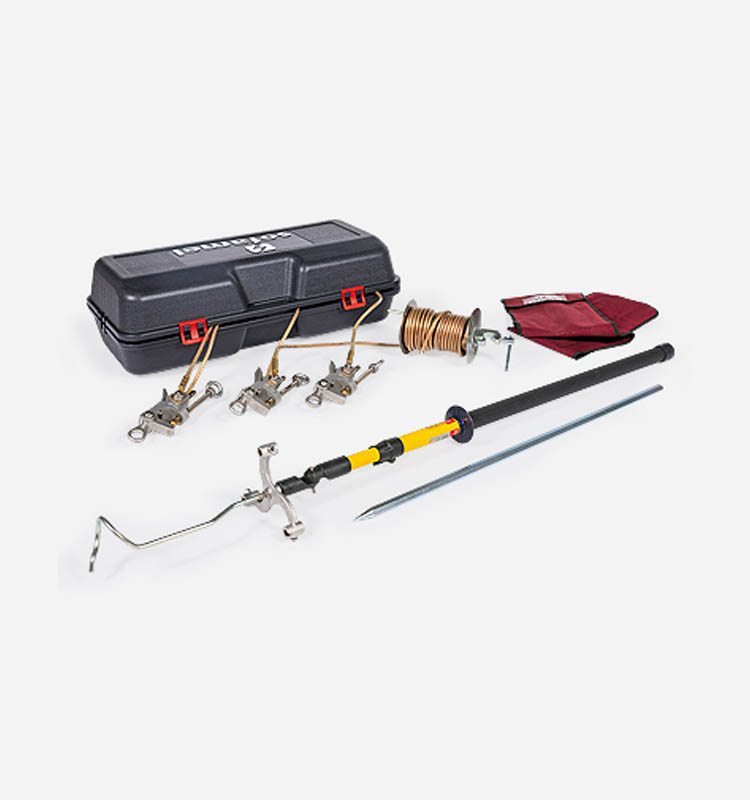

Composed of:
3 PCA-25 aluminium alloy clamps with automatic activation fastening and final
mechanical fixing for cylindrical conductors with diameter between 6 and
25 mm.
1 dispenser head with hook with M-10 thread.
2 copper cables with PVC insulation of 16/25/35 mm2
section (depending on
model) and 2.5 m long.
1 copper cable with PVC insulation of 16/16/25 mm2
section (depending on
model) and 15 m long.
1 metallic spool to store the 15 m of earthing cable.
1 telescopic pole (1.10 m folded and 2 m extended).
1 earthing rod.
1 plastic case to store and transport the equipment.
1 bag to store and transport the pole and the earthing rod
